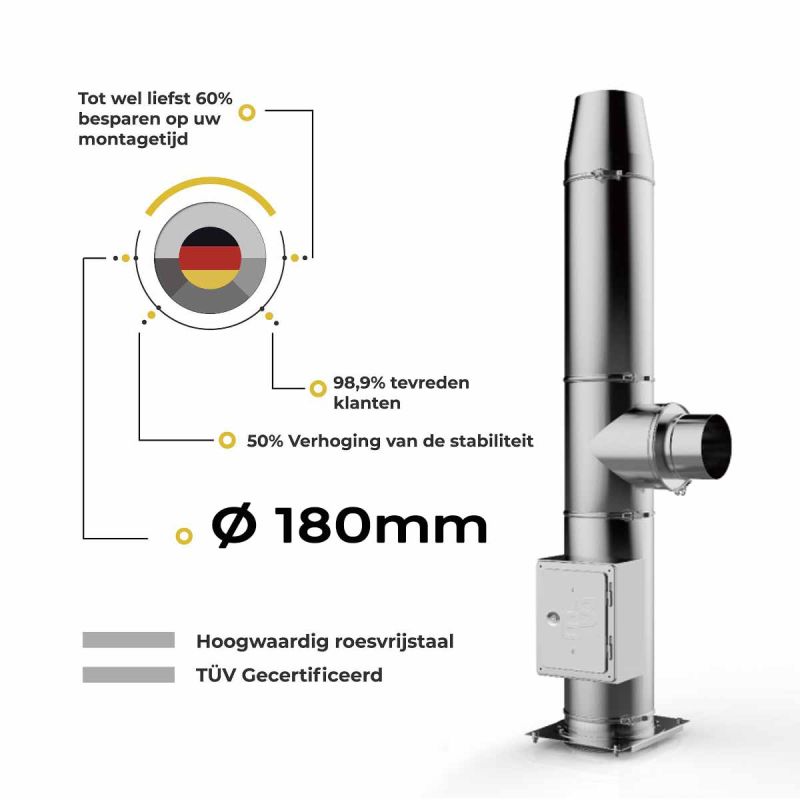

Rookkanaal │ kachelpijp dubbelwandig set Ø180 mm 2.2m tot 12.2m
Levertijd
14-21 dagen
Van
€ 502,00
Incl. 21% VAT ,
excl. verzendkosten
Op voorraad
Nog %1 beschikbaar
SKU
BausatzØ180mm_confi
Inhoud van de sets
Hieronder vind je de inhoud van onze sets per diameter en type (via het dak-, langse de
gevel- en veranda/tuinhuis sets).
Hieronder vind je de inhoud van onze sets per diameter en type (via het dak-,
langse de gevel- en veranda/tuinhuis sets).
- Set langs de gevel zonder inspectieluik
- Set 80-100mm langs de gevel
- Set 130-150-180-200mm langs de gevel
- Set door het dak met muurbeugel
- Set door het dak met dak ondersteuning
- Set voor veranda, thuinhuis en overkapping
Set langs de gevel zonder inspectieluik | ||||||||||
Lengte element 1000mm | Lengte element 500mm | T-stuk | Adapter | Muurrozet | Trekkap | Klemband | Bevestigingsplaat | Muurbeugel | ||
---|---|---|---|---|---|---|---|---|---|---|
2,7m | 2 | 0 | 1 | 1 | 1 | 1 | 6 | 1 | 1 | |
3,2m | 2 | 1 | 1 | 1 | 1 | 1 | 7 | 1 | 1 | |
3,7m | 2 | 0 | 1 | 1 | 1 | 1 | 7 | 1 | 1 | |
4,2m | 3 | 1 | 1 | 1 | 1 | 1 | 8 | 1 | 1 | |
4,7m | 3 | 0 | 1 | 1 | 1 | 1 | 8 | 1 | 1 | |
5,2m | 4 | 1 | 1 | 1 | 1 | 1 | 9 | 1 | 1 | |
5,7m | 4 | 0 | 1 | 1 | 1 | 1 | 9 | 1 | 1 | |
6,2m | 5 | 1 | 1 | 1 | 1 | 1 | 10 | 1 | 2 | |
6,7m | 5 | 0 | 1 | 1 | 1 | 1 | 10 | 1 | 2 | |
7,2m | 6 | 1 | 1 | 1 | 1 | 1 | 11 | 1 | 2 | |
7,2m | 6 | 0 | 1 | 1 | 1 | 1 | 11 | 1 | 2 | |
7,7m | 6 | 0 | 1 | 1 | 1 | 1 | 11 | 1 | 2 | |
8,2m | 7 | 1 | 1 | 1 | 1 | 1 | 12 | 1 | 2 | |
8,7m | 7 | 0 | 1 | 1 | 1 | 1 | 12 | 1 | 3 | |
9,2m | 8 | 1 | 1 | 1 | 1 | 1 | 13 | 1 | 3 | |
9,7m | 8 | 0 | 1 | 1 | 1 | 1 | 13 | 1 | 3 | |
10,2m | 9 | 1 | 1 | 1 | 1 | 1 | 13 | 1 | 3 | |
10,7m | 9 | 0 | 1 | 1 | 1 | 1 | 14 | 1 | 3 | |
11,2m | 10 | 1 | 1 | 1 | 1 | 1 | 15 | 1 | 3 | |
11,7m | 10 | 0 | 1 | 1 | 1 | 1 | 15 | 1 | 3 |
Set 80-100mm langs de gevel | ||||||||||
Lengte element 1000mm | Lengte element 500mm | Deksel voor t-stuk | T-stuk | Adapter | Muurrozet | Trekkap | Klemband | Bevestigingsplaat | Muurbeugel | |
---|---|---|---|---|---|---|---|---|---|---|
2,2m | 1 | 0 | 1 | 2 | 1 | 1 | 1 | 5 | 1 | 1 |
2,7m | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 6 | 1 | 1 |
3,2m | 2 | 0 | 1 | 2 | 1 | 1 | 1 | 6 | 1 | 1 |
3,7m | 2 | 1 | 1 | 2 | 1 | 1 | 1 | 7 | 1 | 1 |
4,2m | 3 | 0 | 1 | 2 | 1 | 1 | 1 | 7 | 1 | 1 |
4,7m | 3 | 1 | 1 | 2 | 1 | 1 | 1 | 8 | 1 | 1 |
5,2m | 4 | 0 | 1 | 2 | 1 | 1 | 1 | 8 | 1 | 1 |
5,7m | 4 | 1 | 1 | 2 | 1 | 1 | 1 | 9 | 1 | 1 |
6,2m | 5 | 0 | 1 | 2 | 1 | 1 | 1 | 9 | 1 | 2 |
6,7m | 5 | 1 | 1 | 2 | 1 | 1 | 1 | 10 | 1 | 2 |
7,2m | 6 | 0 | 1 | 2 | 1 | 1 | 1 | 10 | 1 | 2 |
7,2m | 6 | 0 | 1 | 2 | 1 | 1 | 1 | 10 | 1 | 2 |
7,7m | 6 | 1 | 1 | 2 | 1 | 1 | 1 | 11 | 1 | 2 |
8,2m | 7 | 0 | 1 | 2 | 1 | 1 | 1 | 11 | 1 | 2 |
8,7m | 7 | 1 | 1 | 2 | 1 | 1 | 1 | 12 | 1 | 2 |
9,2m | 8 | 0 | 1 | 2 | 1 | 1 | 1 | 12 | 1 | 3 |
9,7m | 8 | 1 | 1 | 2 | 1 | 1 | 1 | 13 | 1 | 3 |
10,2m | 9 | 0 | 1 | 2 | 1 | 1 | 1 | 13 | 1 | 3 |
10,7m | 9 | 1 | 1 | 2 | 1 | 1 | 1 | 13 | 1 | 3 |
11,2m | 10 | 0 | 1 | 2 | 1 | 1 | 1 | 14 | 1 | 3 |
11,7m | 10 | 1 | 1 | 2 | 1 | 1 | 1 | 15 | 1 | 3 |
12,2m | 11 | 0 | 1 | 2 | 1 | 1 | 1 | 15 | 1 | 3 |
Set 130-150-180-200mm langs de gevel | ||||||||||
Lengte element 1000mm | Lengte element 500mm | Inspectieluik | T-stuk | Adapter | Muurrozet | Trekkap | Klemband | Bevestigingsplaat | Muurbeugel | |
---|---|---|---|---|---|---|---|---|---|---|
2,2m | 1 | 0 | 1 | 1 | 1 | 1 | 1 | 5 | 1 | 1 |
2,7m | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 6 | 1 | 1 |
3,2m | 2 | 0 | 1 | 1 | 1 | 1 | 1 | 6 | 1 | 1 |
3,7m | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 7 | 1 | 1 |
4,2m | 3 | 0 | 1 | 1 | 1 | 1 | 1 | 7 | 1 | 1 |
4,7m | 3 | 1 | 1 | 1 | 1 | 1 | 1 | 8 | 1 | 1 |
5,2m | 4 | 0 | 1 | 1 | 1 | 1 | 1 | 8 | 1 | 1 |
5,7m | 4 | 1 | 1 | 1 | 1 | 1 | 1 | 9 | 1 | 1 |
6,2m | 5 | 0 | 1 | 1 | 1 | 1 | 1 | 9 | 1 | 2 |
6,7m | 5 | 1 | 1 | 1 | 1 | 1 | 1 | 10 | 1 | 2 |
7,2m | 6 | 0 | 1 | 1 | 1 | 1 | 1 | 10 | 1 | 2 |
7,7m | 6 | 1 | 1 | 1 | 1 | 1 | 1 | 11 | 1 | 2 |
8,2m | 7 | 0 | 1 | 1 | 1 | 1 | 1 | 11 | 1 | 2 |
8,7m | 7 | 1 | 1 | 1 | 1 | 1 | 1 | 12 | 1 | 2 |
9,2m | 8 | 0 | 1 | 1 | 1 | 1 | 1 | 12 | 1 | 3 |
9,7m | 8 | 1 | 1 | 1 | 1 | 1 | 1 | 13 | 1 | 3 |
10,2m | 9 | 0 | 1 | 1 | 1 | 1 | 1 | 13 | 1 | 3 |
10,7m | 9 | 1 | 1 | 1 | 1 | 1 | 1 | 13 | 1 | 3 |
11,2m | 10 | 0 | 1 | 1 | 1 | 1 | 1 | 14 | 1 | 3 |
11,7m | 10 | 1 | 1 | 1 | 1 | 1 | 1 | 15 | 1 | 3 |
12,2m | 11 | 0 | 1 | 1 | 1 | 1 | 1 | 15 | 1 | 3 |
Set door het dak met muurbeugel | ||||
3m | 4m | 5m | ||
---|---|---|---|---|
Adapter | 1 | 1 | 1 | |
Lengte element 1000mm | 3 | 4 | 5 | |
Dakdoorvoer met loodslab | 1 | 1 | 1 | |
Stormkraag | 1 | 1 | 1 | |
Muurbeugel | 1 | 2 | 2 | |
Regenkap | 1 | 1 | 1 | |
Klemband | 4 | 5 | 6 |
Set door het dak met dak ondersteuning | ||||
2m | 3m | 4m | ||
---|---|---|---|---|
Adapter | 1 | 1 | 1 | |
Lengte element 1000mm | 2 | 3 | 4 | |
Afwerkingsplaat | 1 | 1 | 1 | |
Dakdoorvoer met loodslab | 1 | 1 | 1 | |
Stormkraag | 1 | 1 | 1 | |
Dakondersteuning | 1 | 1 | 1 | |
Regenkap | 1 | 1 | 1 | |
Klemband | 3 | 4 | 5 |
Set voor veranda, thuinhuis en overkapping | ||||||||||
Lengte | Lengte element 1000mm | dubbelwandig lengte element 1000mm | Dakdoorvoer | Stormkraag | Regenkap | Klemband | ||||
---|---|---|---|---|---|---|---|---|---|---|
3 m | 2 | 1 | 1 | 1 | 1 | 2 | ||||
4 m | 3 | 1 | 1 | 1 | 1 | 2 |
Levertijd | 14-21 dagen |
---|
